RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

Place of Origin : Shenzhen

Brand Name : ACASOM

Model Number : ACA-Aten2450S1

Price : $28.00/sets

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 3000

Delivery Time : 3-5 worker days

Application : drone signal blocking parts

Type : jamming gun parts

Series : Super drone signal blocker

Features : high power

Mounting Type : self-installing

Description : high power signal blocking device

Manufacturing Date Code : 202301XX

Product name : 2.4GHz drone signal blocker

Frequency : 2400GHz-2500GHz

Gain : 13 dBi

VSWR : <1.5:1

Polarization : Horizontal or Vertical

Horizontal Beamwidth : 26°

Vertical Beamwidth : 23°

Nominal Impedance : 50 Ohms

F/B Ratio : >20dB

Lightning Protection : DC Ground

Contact Now

50 Ohm 13 dBi High Gain RFSMA Male Yagi Antenna for Drone Blocking

Product overview

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain1.Descriptions

 50 Ohm 13 dBi High Gain RFSMA Male Yagi Antenna for Drone Blocking

This 50 ohm 13 dBi high gain RFSMA male Yagi antenna is designed for drone jamming and blocking. Its unique Yagi structure provides strong directivity and gain, ensuring effective signal enhancement in a specific direction, making it suitable for anti-drone systems, surveillance and security applications.

2.Product Specifications

No. Items Specifications
1 Frequency range 2400-2500MHz
2 Gain 13 dBi
3 VSWR ＜1.5:1
4 Polarization Horizontal or Vertical
5 Horizontal Beamwidth 26°
6 Vertical Beamwidth 23°
7 Nominal Impedance 50 Ohms
8 F/B Ratio: >20dB
9 Max Input Power: 50 W
10 Lightning Protection DC Ground

3.Product Advantages

  • High Gain (13 dBi) Provides 13 dBi gain, which can significantly improve the signal strength in a specific direction and ensure clear signals during long-distance transmission.
  • Yagi antenna design Yagi structure provides superior directivity, which can concentrate the signal in the target direction, effectively reduce interference and improve signal quality.
  • 50 ohm impedance uses standard 50 ohm impedance, suitable for most wireless communication devices, ensuring good compatibility and connection effects.
  • RFSMA male connector Equipped with RFSMA male connector, it is easy to connect to a variety of devices, easy to install, and suitable for different applications.
  • Widely used in anti-drone systems and suitable for various anti-drone applications, such as airports, military bases and public events, to improve the effectiveness and reliability of security protection.

4.Product details

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

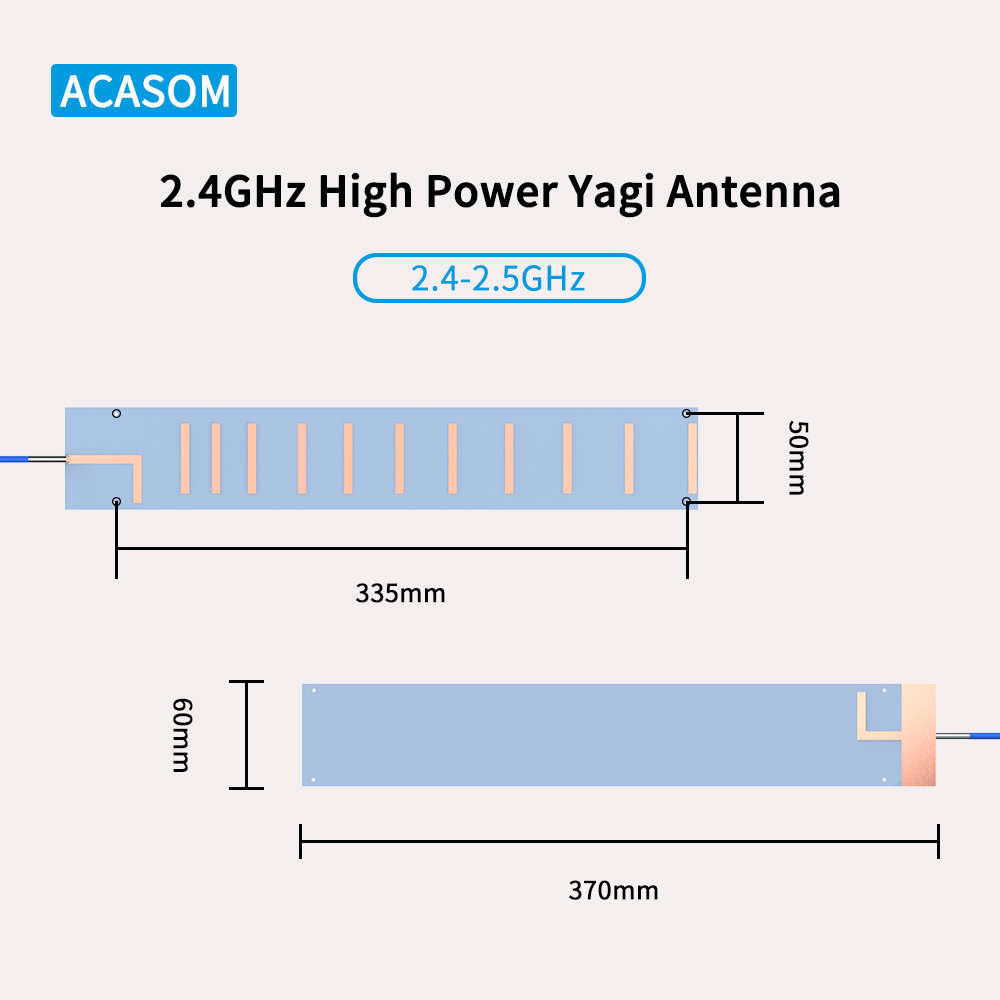

2.4GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna
Frequency:2.4GHz-2.5GHz
RFIN POWER : 47dBm(50W)
ACASOM accept customizing the Frequency you need

High quality parts for jarmming gun
